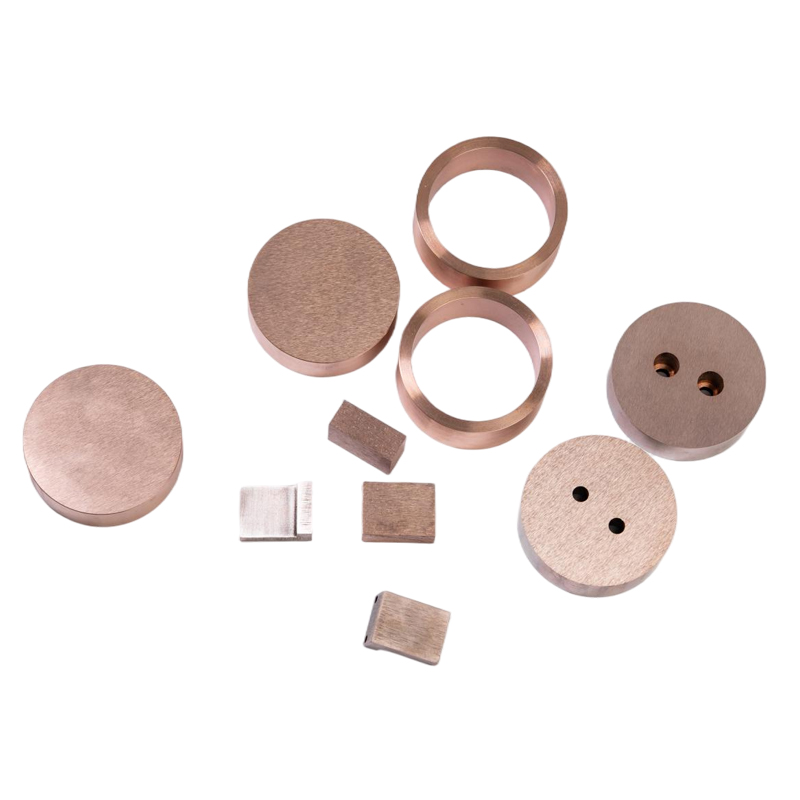

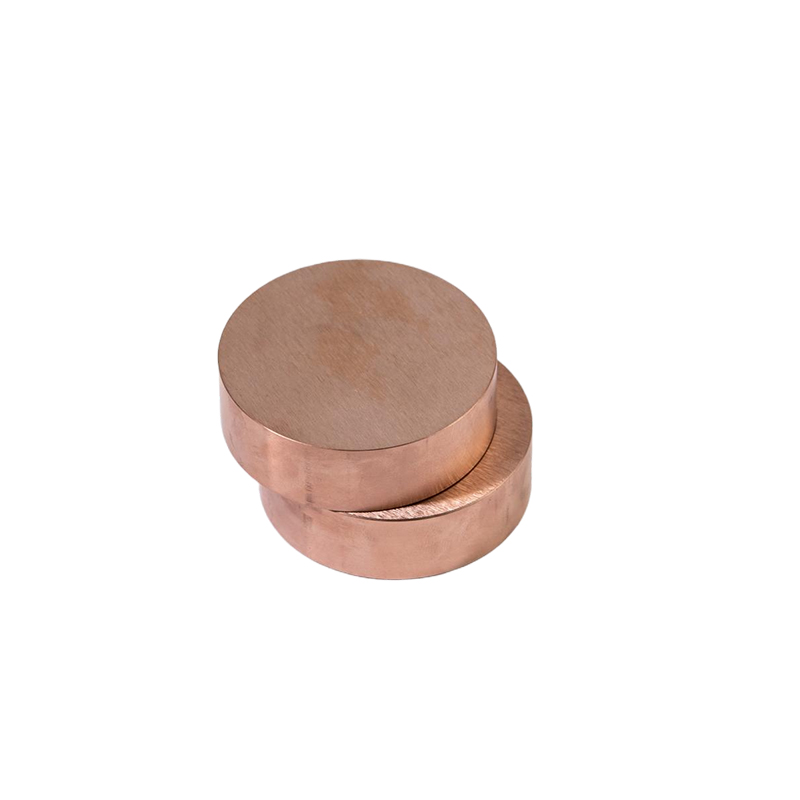

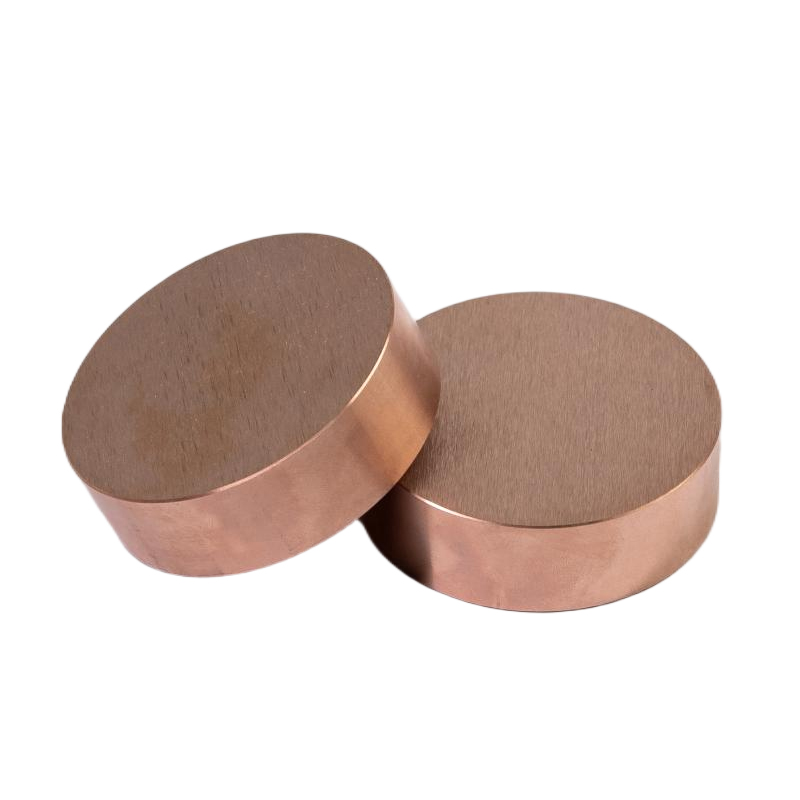

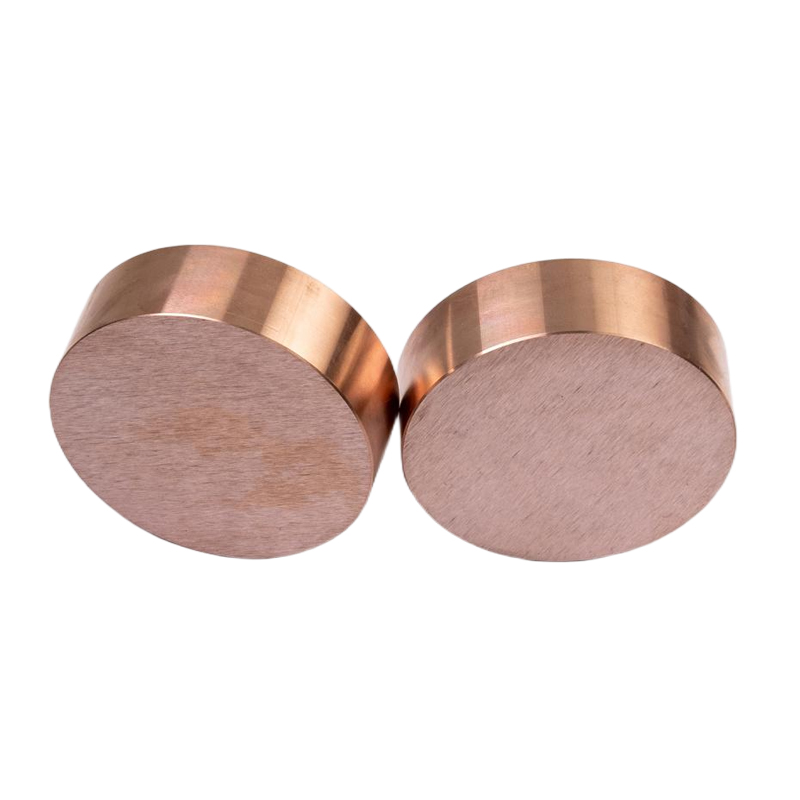

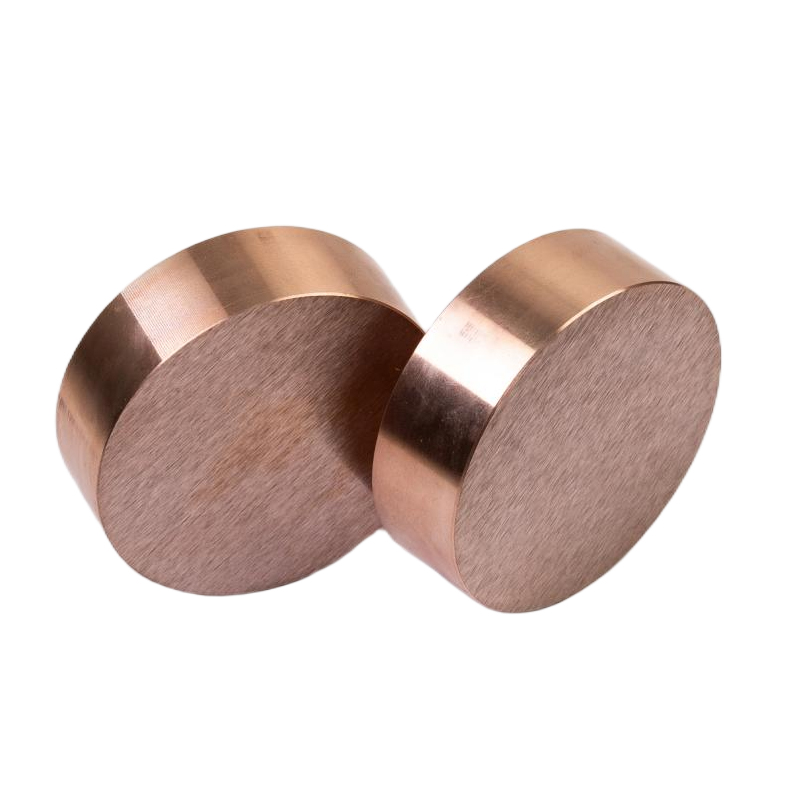

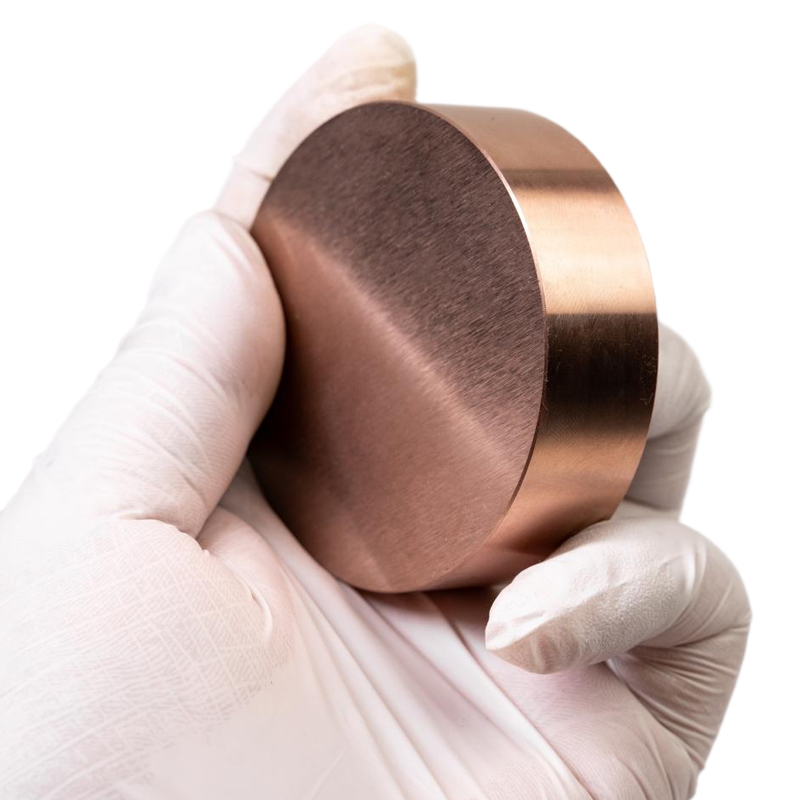

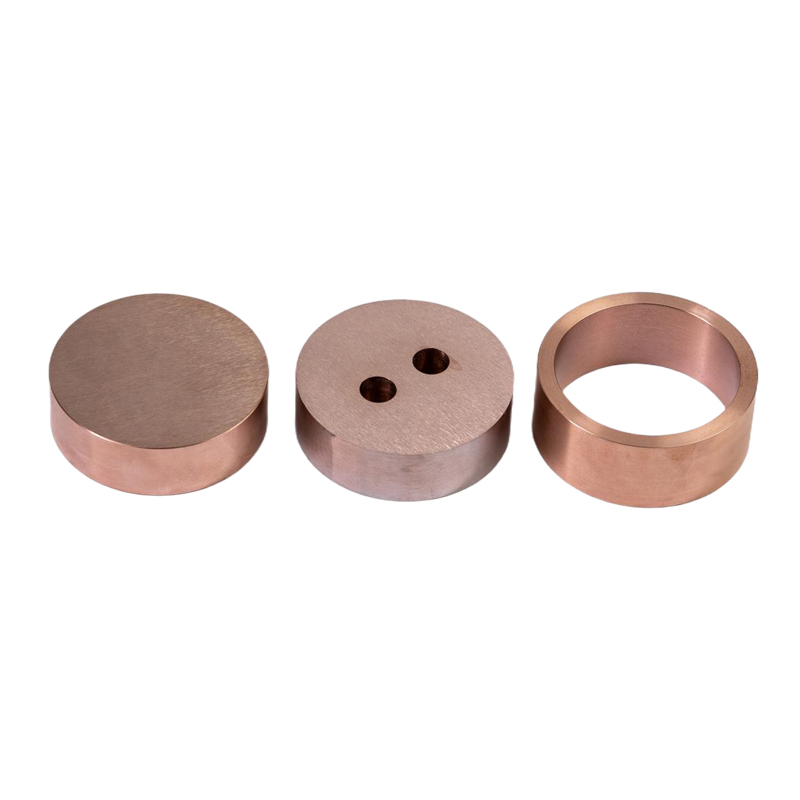

Our Custom Non-Standard W75Cu25 Tungsten Copper Round Bars and Discs are precision-engineered to meet specialized customer dimensions, drawings, and high-stress application requirements. Manufactured through advanced powder metallurgy (pressing, high-temperature vacuum sintering, and copper infiltration), the W75Cu25 alloy (75% Tungsten, 25% Copper) offers high density, superior thermal arc resistance, and exceptional mechanical hardness coupled with high electrical conductivity.
These custom-machined short round bars and thick discs feature a fine surface finish, uniform microstructure, and precise dimensional control, making them ideal for EDM sparking electrodes, heat dissipation substrates, high-voltage arcing contacts, and resistance welding tooling.
Material Grade: W75Cu25 / W75/Cu25 (75% Tungsten, 25% Copper)
Manufacturing Process: Isostatic Powder Metallurgy Sintering & Vacuum Copper Infiltration
Density: Approx. 14.50 g/cm3
Hardness: Approx. 190 - 210 HB
Conductivity (IACS): Approx. 38% IACS
Thermal Conductivity: Approx. 200 - 220 W/(m-K)
Custom Capabilities: Precision lathe turning, surface grinding, centerless grinding, wire EDM, drilling, and polishing according to 2D/3D customer drawings (PDF, CAD, STEP).
Parameter | Custom Specification / Capability |
Alloy Composition | W75Cu25 (75% W / 25% Cu) |
Form Factor | Non-Standard Short Round Bar, Thick Disc, Cylinder |
Diameter Range | Custom diameters available upon request |
Height / Thickness | Custom cut-to-length and precision ground thickness |
Machining Tolerance | Up to +/- 0.005 mm (Per drawing specs) |
Surface Quality | Fine turned, ground, or mirror polished (Ra 0.4 - Ra 1.6) |
Why Choose Us:
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
