Our W80Cu20 Tungsten Copper Alloy Rods (80% Tungsten, 20% Copper) are engineered through a precision powder metallurgy pressing, high-temperature sintering, and copper infiltration process. Designed specifically for high-stress electrical contact and machining applications, W80Cu20 combines the superior hardness, thermal arc resistance, and low thermal expansion of tungsten with the excellent electrical and thermal conductivity of copper. It is the ideal material choice for EDM (Electrical Discharge Machining) electrodes, resistance welding tips, and high-voltage electrical Contacts.
Grade Material: W80Cu20 (80% W, 20% Cu)
Manufacturing Process: Powder Metallurgy Sintering & Copper Infiltration
Standard Length: 500 mm

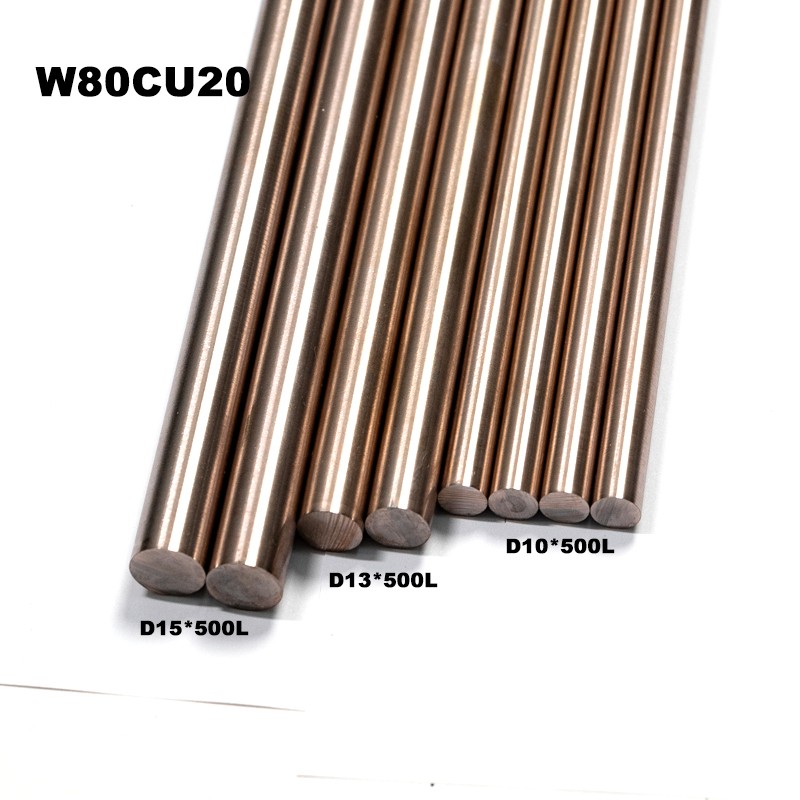

Available Diameters in Stock:
Diameter 10 mm x Length 500 mm (D10x500L)
Diameter 13 mm x Length 500 mm (D13x500L)
Diameter 15 mm x Length 500 mm (D15x500L)
Density: Approx. 15.15 g/cm3
Conductivity (IACS): Approx. 34% IACS
Hardness: Approx. 220 HB
Customization: Custom diameters, lengths, precision centerless grinding, and cut-to-length services available upon request.
Specification
| Grade | Diameter (D) | Length (L) | Material Composition | Primary Application |
| W80Cu20 | 10 mm | 500 mm | 80% Tungsten / 20% Copper | EDM Sparking & Fine Electrodes |
| W80Cu20 | 13 mm | 500 mm | 80% Tungsten / 20% Copper | Medium Resistance Welding & EDM |
| W80Cu20 | 15 mm | 500 mm | 80% Tungsten / 20% Copper | Heavy-Duty Welding & Arc Contacts |
Why Choose Us:
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
