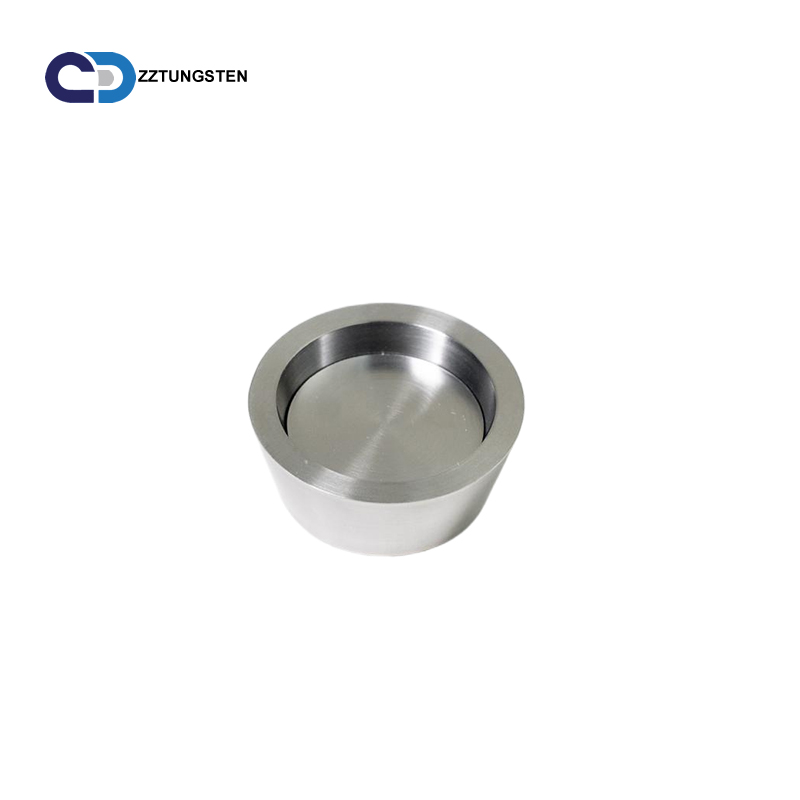

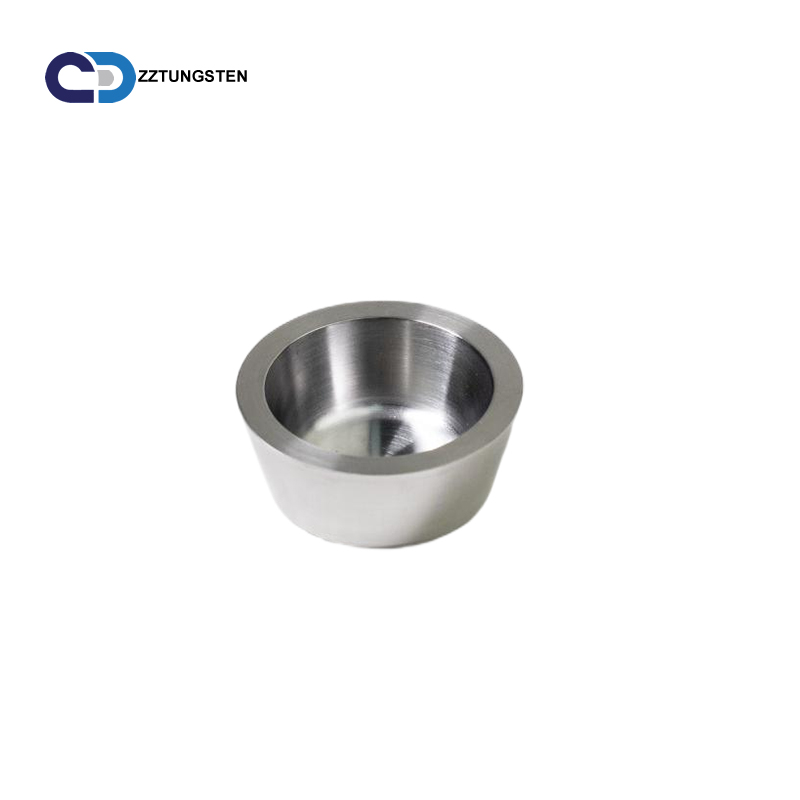

Our Tungsten Carbide (WC) Crucibles are engineered for the most demanding thermal and mechanical environments. Unlike standard graphite or ceramic crucibles, WC crucibles offer unparalleled hardness 90-92HRA and density 14.5-15.0 g/cm. These are specifically designed for applications where contamination must be minimized and the container must withstand aggressive abrasive forces or high-vacuum induction heating.
| Property | Value / Specification |
| Material Composition | 90-94% WC + 6-10% Co(Cobalt Binder) |
| Density | 14.5-15.0g/cm |
| Hardness | 90-92HRA |
| Melting Point | 2870WC Base |
| Transverse Rupture Strength | 2600MPa |
| Surface Roughness | < 0.4 μ Polished |
We offer a range of standard cylindrical and tapered geometries. Additionally, we provide OEM Customization for:
Wall thickness (for specific thermal gradients).

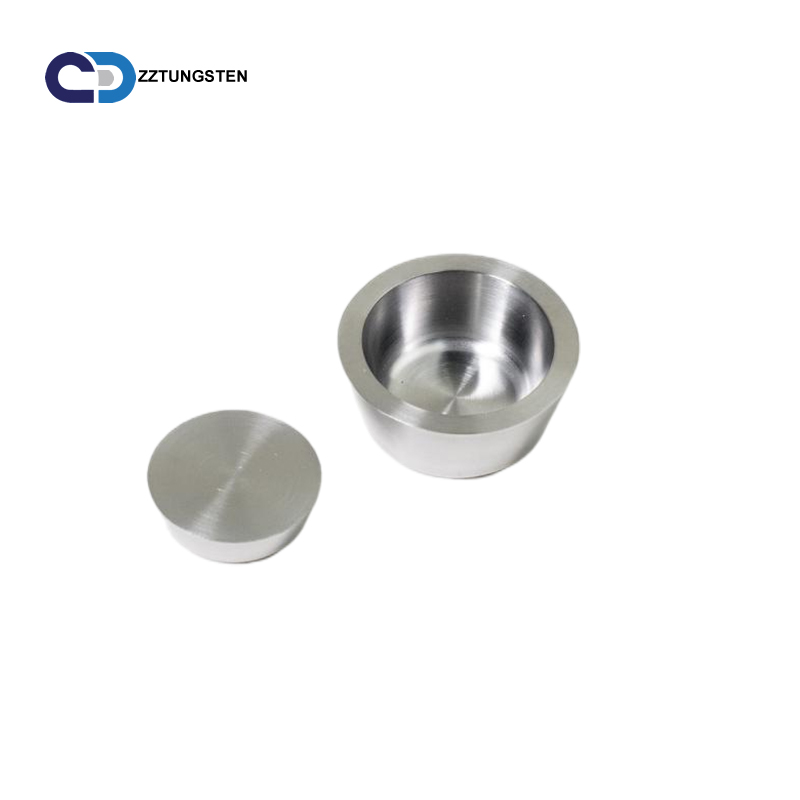

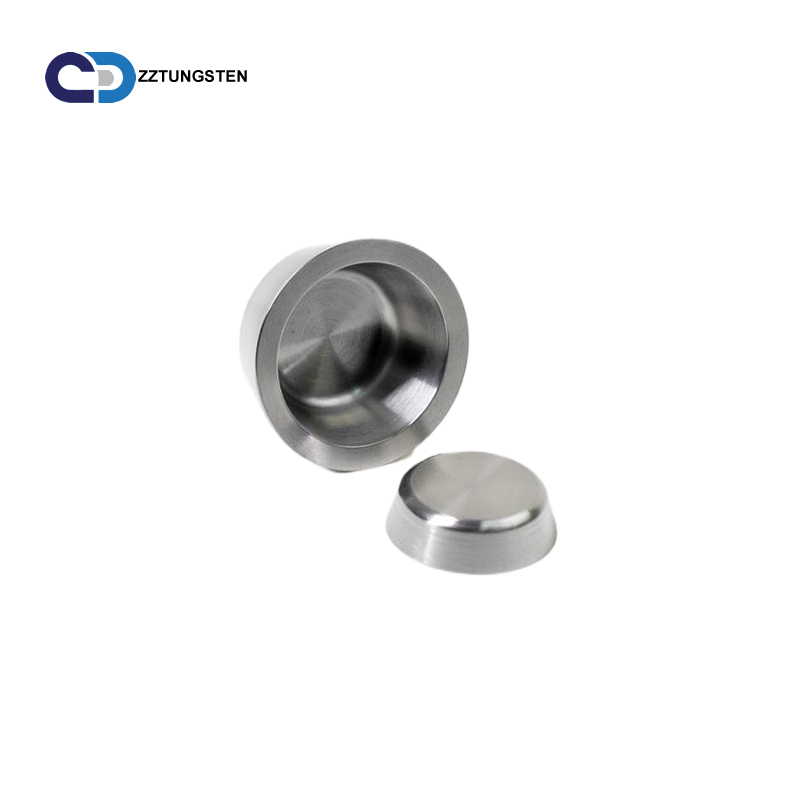

Integrated lids and pouring spouts.
Threaded bases for planetary ball mill integration.
| Diameter(mm) | Thickness(mm) | Height(mm) | Surface finish | inner surface finish | inner bottom finish |
| 30-50 | 2-10 | ≤200 | ≤Ra2.0 | ≤Ra2.4 | ≤Ra2.8 |
| 50-100 | 3-15 | ≤300 | ≤Ra2.0 | ≤Ra2.4 | ≤Ra2.8 |
| 100-150 | 3-15 | ≤350 | ≤Ra2.0 | ≤Ra2.4 | ≤Ra2.8 |
| 150-200 | 5-20 | ≤400 | ≤Ra2.0 | ≤Ra2.4 | ≤Ra2.8 |
| 200-300 | 8-25 | ≤500 | ≤Ra2.0 | ≤Ra2.4 | ≤Ra2.8 |
| 300-400 | 8-30 | ≤600 | ≤Ra2.0 | ≤Ra2.4 | ≤Ra2.8 |
| 400-450 | 8-30 | ≤650 | ≤Ra2.0 | ≤Ra2.4 | ≤Ra2.8 |
| 450-600 | 8-35 | ≤800 | ≤Ra2.0 | ≤Ra2.4 | ≤Ra2.8 |
Metallurgy: High-frequency induction melting of rare earth metals and alloys.
Laboratory Analysis: Used as milling jars or vessels for preparing high-purity geological or ceramic samples.
Crystal Growth: Specialized containers for growing synthetic crystals under high pressure/temperature.
Thin Film Deposition: Evaporation sources for vacuum coating processes.
Why Choose Us:
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
Factory display
